Cover door sill / wheel arch for BMW X1 F48 LCI 18d

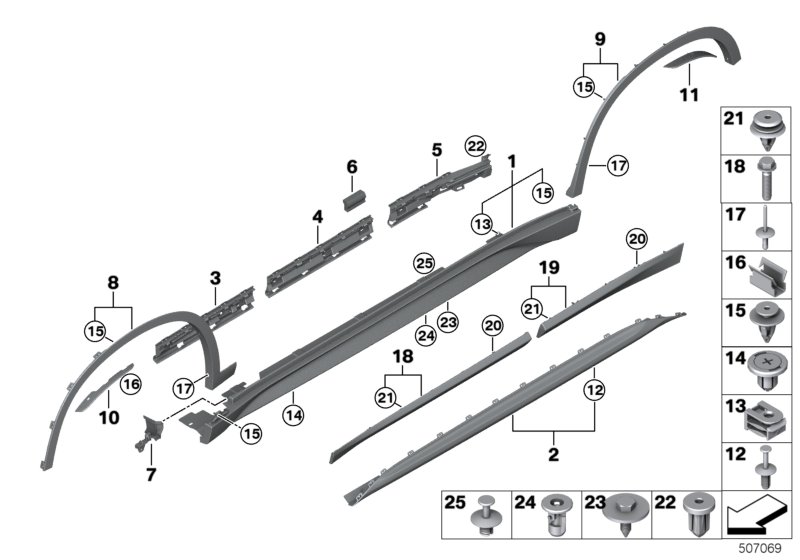

This Cover door sill / wheel arch technical drawing provides a detailed breakdown of the assembly for the X1 F48 LCI 18d. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Aerodynamics package |
S715A=No |
||||||||
| For vehicles with Sport Line and X Line |
P7ACA=Yes P7HWA=Yes |
|||||||||
| 01 | Side skirt trim right | LINES | 1 | 51777403398 | Shop at ECS Tuning | |||||
| 01 | Side skirt trim left | LINES | 1 | 51777403399 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and X Line |
P7ACA=Yes P7HWA=No |
|||||||||
| 01 | Side skirt trim right | LINES | 1 | 51777403398 | Shop at ECS Tuning | |||||
| 01 | Side skirt trim left | LINES | 1 | 51777403399 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and X Line |
P7ACA=No P7HWA=Yes |
|||||||||
| 01 | Side skirt trim right | LINES | 1 | 51777403398 | Shop at ECS Tuning | |||||
| 01 | Side skirt trim left | LINES | 1 | 51777403399 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and X Line |
P7ACA=No P7HWA=No |
|||||||||
| 01 | Side skirt trim left | BASIS | 1 | 51777332327 | Shop at ECS Tuning | |||||
| 01 | Side skirt trim right | BASIS | 1 | 51777332328 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and X Line |
P7ACA=Yes P7HWA=No |
|||||||||
| 02 | Cover panel underride guard primed rgt | SPORT LINE | 1 | 51777403400 | Shop at ECS Tuning | |||||
| 02 | Cover panel underride guard primed lft | SPORT LINE | 1 | 51777403401 | Shop at ECS Tuning | |||||
| For vehicles with Sport Line and X Line |
P7ACA=No P7HWA=Yes |
|||||||||
| 02 | Cover panel, underride guard, left | X-LINE | 1 | 51777379993 | Shop at ECS Tuning | |||||
| 02 | Cover panel, underride guard, right | X-LINE | 1 | 51777379994 | Shop at ECS Tuning | |||||
| 03 | Support strip, rocker panel, left front | 1 | 51777332329 | Shop at ECS Tuning | ||||||
| 03 | Support strip, rocker panel, right front | 1 | 51777332330 | Shop at ECS Tuning | ||||||
| 04 | Support strip, rocker panel, center left | 1 | 51777332331 | Shop at ECS Tuning | ||||||
| 04 | Support strip, rocker panel, center rgt | 1 | 51777332332 | Shop at ECS Tuning | ||||||
| 05 | Mount strip, rocker panel, rear left | 1 | 51777332333 | Shop at ECS Tuning | ||||||
| 05 | Mount strip, rocker panel, rear right | 1 | 51777332334 | Shop at ECS Tuning | ||||||
| 06 | Foam block | 2 | 51777443700 | Shop at ECS Tuning | ||||||
| 07 | Mount, cover, door sill, left | 1 | 51127332335 | Shop at ECS Tuning | ||||||
| 07 | Mount, cover, door sill, right | 1 | 51127332336 | Shop at ECS Tuning | ||||||
| 08 | Wheel arch trim, left front | 1 | 51777332337 | Shop at ECS Tuning | ||||||
| 08 | Wheel arch trim, right front | 1 | 51777332338 | Shop at ECS Tuning | ||||||
| 09 | Wheel arch trim, rear left | 1 | 51777332339 | Shop at ECS Tuning | ||||||
| 09 | Wheel arch trim, rear right | 1 | 51777332340 | Shop at ECS Tuning | ||||||
| 12 | Expanding rivet | D = 6MM | 14 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
| 13 | C-clip for plastic nut | TS5 | 2 | 07147311312 | Shop at ECS Tuning | |||||
| 14 | Expanding rivet | 12 | 07130702966 | $0.48 | Shop at ECS Tuning | |||||
| 15 | Clip | 26 | 51777171002 | $0.55 | Shop at ECS Tuning | |||||
| 16 | Clamp | 4 | 51451857745 | $0.42 | Shop at ECS Tuning | |||||
| 17 | Expanding rivet, black | BLACK | 26 | 51777171004 | $0.38 | Shop at ECS Tuning | ||||
| 18 | Moulding rocker panel front left | 1 | 51137352091 | Shop at ECS Tuning | ||||||
| 18 | Moulding rocker panel front right | 1 | 51137352092 | Shop at ECS Tuning | ||||||
| 19 | Moulding rocker panel rear left | 1 | 51137352093 | Shop at ECS Tuning | ||||||
| 19 | Moulding rocker panel rear right | 1 | 51137352094 | Shop at ECS Tuning | ||||||
| 20 | Screw | VS-TS6X20-U2 | 4 | 07129909270 | Shop at ECS Tuning | |||||
| 21 | Clip with seal | 38 | 07147443710 | Shop at ECS Tuning | ||||||
| 22 | Plug-in nut | 8 | 51127461407 | Shop at ECS Tuning | ||||||
| 23 | Hex bolt | TS5X20 SW8 D=22 | X | 07149213164 | $0.38 | Shop at ECS Tuning | ||||
| 24 | Expanding nut | L=18.4, DMAX=18 | X | 07147201307 | $0.25 | Shop at ECS Tuning | ||||
| 25 | Expanding rivet | 14 | 16136753087 | $0.35 | Shop at ECS Tuning | |||||
