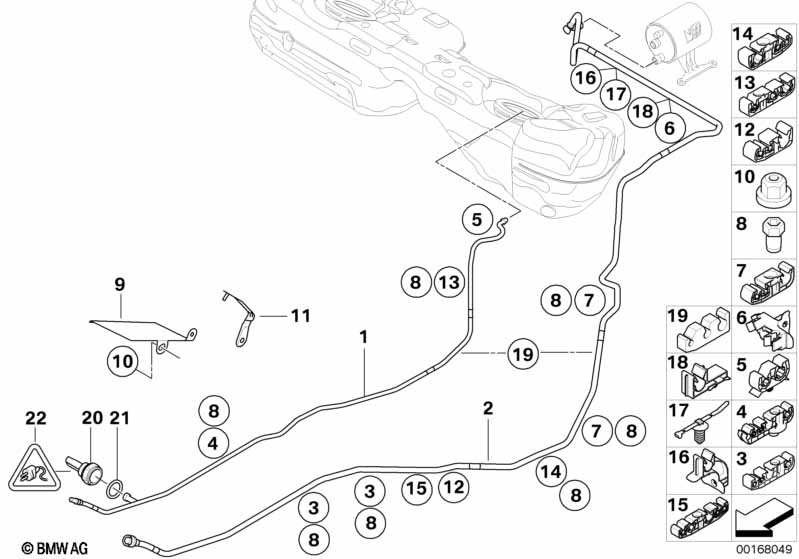

| No. | Description | Supplement | Qty | From | Up To | Part Number | Price | Notes | Photo |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Fuel feed line | 1 | 02/2013 | 16122283485 | $190.10 | ||||
| 01 | Fuel feed line | 1 | 16122284752 | ||||||
| 02 | Scavenge air line | 1 | 16122283488 | $70.95 | |||||
| 03 | Pipe clip | D8/D12/2XD4,75 | 4 | 16126763897 | $2.05 | ||||
| 04 | Pipe clip | 1 | 16132283454 | ||||||
| 05 | Pipe clip | 1 | 16126765062 | $2.05 | |||||
| 07 | Pipe clip | D12/2XD4,75 | 4 | 16126766234 | $2.05 | ||||
| 08 | Bolting pin, short | 8 | 16126766237 | $0.35 | |||||
| 11 | Bracket | 1 | 16127181073 | $7.47 | |||||
| only in conjunction with | |||||||||
| -- | Pipe clip | D8 | 1 | 16126766396 | $1.05 | ||||
| 19 | Vibration damper | 1 | 16122283498 | $3.60 | |||||
| 20 | Sensor for low pressure | 1 | 13537622231 | ||||||
| only in conjunction with | |||||||||
| -- | Adapter, low-pressure sensor | 1 | 16124800029 | ||||||
| only applies to | |||||||||
| -- | Fuel feed line | ? | 16122283485 | $190.10 | |||||
| 20 | Sensor for low pressure | 1 | 13537622231 | ||||||
| only applies to | |||||||||
| -- | Fuel feed line | ? | 16122284752 | ||||||
| 21 | O-ring | 8,2X1,5 | 1 | 13537559991 | $3.11 | ||||
| 22 | Socket housing, blue | 1 | 12527507526 | $2.53 | |||||
| only in conjunction with | |||||||||
| -- | Sealing grommet | 0.5-0.75MM² | 1 | 61138366245 | $0.17 | ||||
| -- | Terminal socket for MLK 1,2 | 0,25-0,5 MM²/AG | 1 | 12527502932 | $0.50 | ||||
Ads by RealOEM
Eres un experto usando catálogos de partes para BMW?
Queremos ofrecerle una carrera con prospección como
representante de servicio al cliente trabajando desde casa.
Si usted esta interesado, pulsar acá y envié su currículo
Notes
- Items pictured but not listed are not installed on your vehicle.
- Items pictured without a number are listed on another diagram.
