E82 125i     Intake manifold system

Language:
Sponsored links
 RealOEM.com Home => Select another car => Engine => Intake manifold

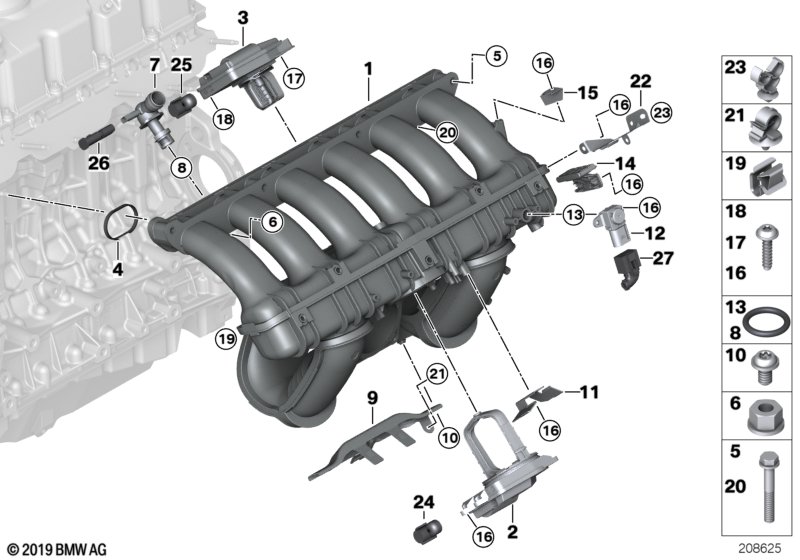

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
01Intake manifold111617559523$573.17
02Adjuster unit111617579114$212.50
03Adjuster unit111617560538$212.50
04Set of profile gaskets111617547242$41.12
05Hex bolt with washerM7X50-U1407119903918$0.89
06Hex nut with plateAM7 ZNNIV SI607129905541$0.64
07Angle connector111617561408$58.63
08O-ring23,6X3,55111617533329$3.67
09BRACKET VENTILATION VALVE111617572643$32.65
10Oval head screwM6X10211617536248$1.05
11Bracket, cable harness111617530272$16.33
12Differential pressure sensor102/201313627585278ENDED
12Differential pressure sensor113628617097
13O-ring113627515272$2.48
16Screw5X201011617535849$0.75
17Screw50X35211617535850$0.75
18Screw50X66111617535851$0.75
21Cable clamp161138368029$0.43
23Pipe clip113537561748$0.72
24Socket housing, blue112527507526$2.53
only in conjunction with
--Terminal socket for MLK 1,20,25-0,5 MM²/AG112527502932$0.50
--Rubber grommet112527503411$0.18
25Socket housing, blue112527507526$2.53
only in conjunction with
--Sealing grommet0.5-0.75MM²161138366245$0.17
--Terminal socket for MLK 1,20,25-0,5 MM²/AG112527502932$0.50
26Socket housing112527507529$2.53
only in conjunction with
--Rubber grommet112527503411$0.18
--Terminal socket for MLK 1,20,25-0,5MM²/SN212527510668$0.50
27Socket housing112527507257$2.53
only in conjunction with
--Socket terminal SLK 2.8 ELA0,22-0,5MM² AG312521427612$0.50See SI 2 02 05(194)
--Single conductor seal0,25-1,0MM²112521748973$0.13

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • SI, TÜV, SDB = Service Information (refer to TIS).
  • ENDED = The part has been discontinued.
