E90N 335d     Contact system MQS

Language:
Sponsored links
 RealOEM.com Home => Select another car => Vehicle electrical system => diverse plugs and connectors

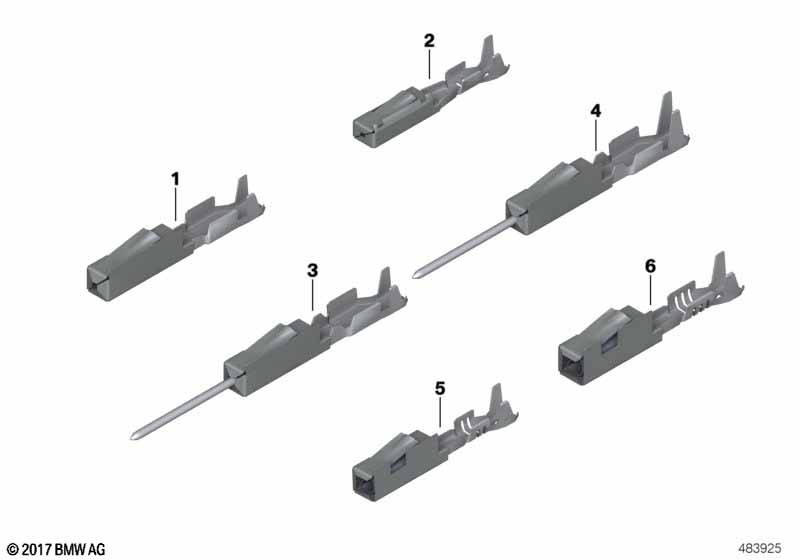

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
01Socket terminal MQS0.2-0.35 MM²/SN?61131383776$0.28
01Socket terminal MQS0.75 MM²/SN?61131393724$0.28
01Socket terminal MQS0,5-0,75 MM²/AU?61131393726$0.68
01Socket terminal MQS0,75 MM² /SN?12527502041$0.50
01Socket terminal MQS0,35-0,5 MM²/SN?12527502039$0.50
01Socket terminal MQS0.2-0.5MM²/SN?61138369696$0.28
01Socket terminal MQS0.75 MM² /SN?61138369700$0.35
02Terminal socket MQS ELA0.75 MM²/SN?61138366260$0.23
only in conjunction with
--Rubber grommet?61138353706$0.27
02Terminal socket MQS ELA0.2-0.5 MM² SN?61131393704$0.23
only in conjunction with
--Rubber grommet0.2MM²?61138366247$0.18
02Terminal socket MQS ELA0,35-0,5 MM²?61136901726$0.43
only in conjunction with
02Terminal socket MQS ELA0,35-0,5MM²/AU?61137835213ENDED
only in conjunction with
02Terminal socket MQS ELA0,75-1,5 MM²?61136901728$0.35
only in conjunction with
--Sealing grommet0.5-0.75MM²?61138366245$0.17
03Contact pin MQS0,2-0,35MM²/SN?61131383672$0.42
03Contact pin MQS0,25-0,35MM²/AU?61131392234$0.70
03Contact pin MQS0,5-0,75MM² /SN?61131393723$0.42
04Terminal pin MQS ELA0.2-0.5MM² /SN?61131393703$0.42
only in conjunction with
--Rubber grommet?61138353705$0.27
04Terminal pin MQS ELA0,5-0,75MM² /SN?61138366269$0.42
only in conjunction with
--Rubber grommet?61138353706$0.27
05Socket terminal MQS1.20,35-0,5MM² SN?12527522387$0.50
05Socket terminal MQS1.20,75-1,5MM² SN?12527522388$0.50
05Bushing contact0,2- 0,5MM²?61130005199$1.88
05Bushing contact0,75MM²?61130006665$1.97
05Bushing contact0,2- 0,5MM²?61130005197$1.65
05Bushing contact0.75MM²?61130006663$1.82
05Bushing contact0,5- 0,75 MM²?61130008998$2.00

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • ENDED = The part has been discontinued.
