E89 Z4 35is     SUCTION SILENCER/FILTER CARTRIDGE

Language:
Sponsored links
 RealOEM.com Home => Select another car => Fuel Preparation System => Intake muffler

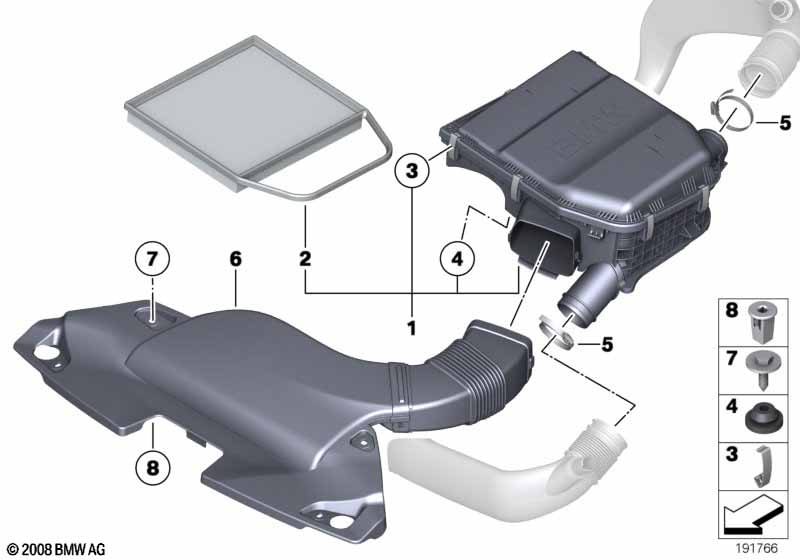

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
01Intake muffler113717582927
02Air filter element113717556961$28.50
03Spring clip513717576676$2.80
04Bump stop313717542860$3.41
05Hose clampL59-66207129952125$1.64
06Suction hood113717582914$70.20
07Hex head screw with washerST4,8X16MM407147129160$0.36
08Expanding nutL=15MM, DMAX=12407146976114$0.09

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • Items pictured but not listed are not installed on your vehicle.
  • Items pictured without a number are listed on another diagram.
