 RealOEM.com Home => Select another car => Engine and Transmission Suspension => Engine Suspension

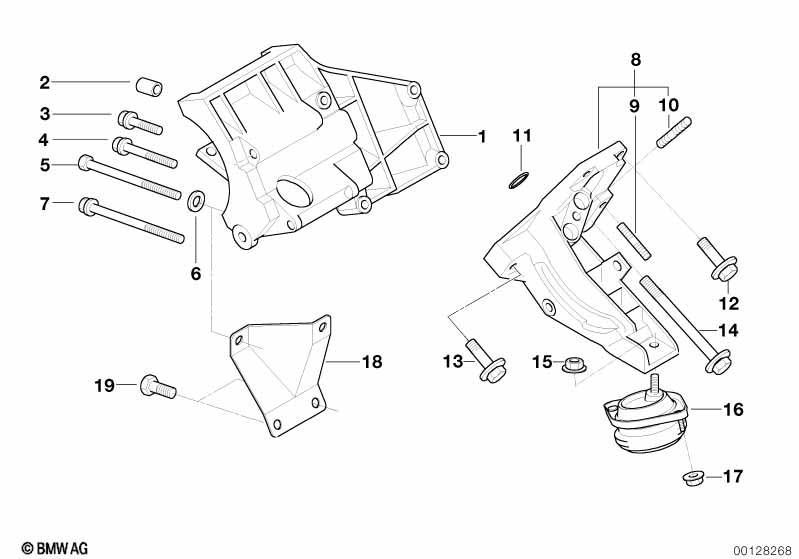

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
01CLIMATE COMPRESSOR SUPPORTING BRACKET109/199764521747258$70.60+core
01CLIMATE COMPRESSOR SUPPORTING BRACKET109/199764551433562$83.28
02DowelD=11,1MM211121726245$1.62
03Hex bolt with washerM8X30-Z1-ZNS307/200107119901137ENDED
03Hex bolt with washerM8X30-ZNNIV SI307119905532$1.25
04Hex bolt with washerM8X50-Z1-ZNS207119901947ENDED
05Hex bolt with washerM8X110-Z1-ZNS107119901946$2.59
06WasherA8,4207119900052$0.11
07Hex bolt with washerM8X90-Z1-ZNS3407119903953ENDED
07Hex bolt with washerM8X90-U1407119905392$1.53
08Engine support, left104/199722121704581$64.56
08Engine support, left104/199722121745739$67.38
09Stud boltM6X28-ZN107129908111$0.63
10Stud boltM8X40-ZN107129908133ENDED
10Stud boltM8X40107129903964
11O-ring22X4212311718712$1.59
12Hex bolt with washerM8X110-Z1-ZNS104/199707119901946$2.59
13Hex bolt with washerM8X30-Z1-ZNS207/200107119901137ENDED
13Hex bolt with washerM8X30-ZNNIV SI207119905532$1.25
14Hex bolt with washerM8X50-Z1-ZNS207119901947ENDED
15Hex nutAM10-8-ZNS3207129904864ENDED
16LEFT RUBBER MOUNTING WITH FLANGE122111092823$92.13
16RIGHT RUBBER MOUNTING WITH FLANGE122111092824$92.13
17Hex nut with plateAM8-ZNS407129900644ENDED
17Hex nut with plateM8-ZNS3407129904862$1.12
18SUPPORT F AIR COND.COMPRESS.SUPP.BRACKET164551432898$7.98
19Hex boltM8X20-ZNS307119901120ENDED
19Hex boltM8X20-ZNNIV SI307119903039

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = The part has been discontinued.
