E38 740iL     Lubrication system-Oil filter

Language:
Sponsored links
 RealOEM.com Home => Select another car => Engine => Lubrication system

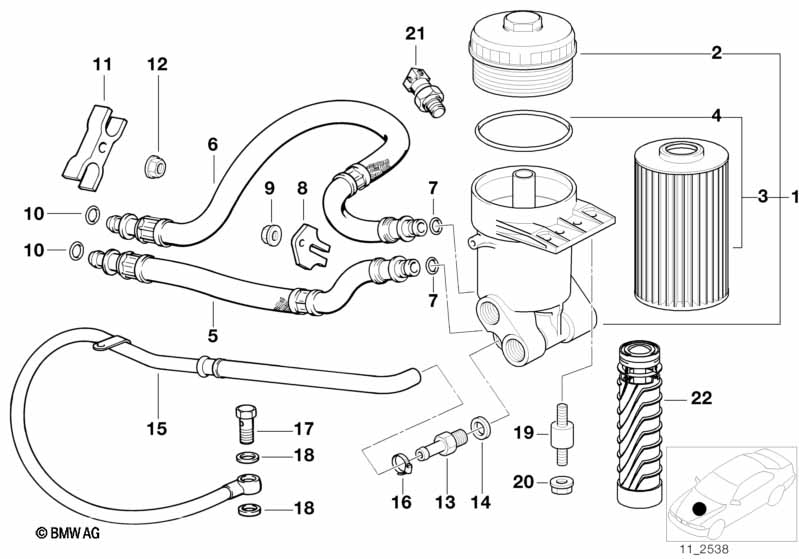

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
01OIL FILTER WITHOUT OIL COOLER CONNECTION109/199711427511169$343.83
only in conjunction with
--Plate109/199711421437552$0.65
01OIL FILTER WITHOUT OIL COOLER CONNECTION109/199711427511169$343.83
02OIL FILTER COVER111421736674$26.45
03Set oil-filter element111427510717$19.71
04O-ring91X4111421741000$5.04
05PRESSURE HOSE ASSY INLET111421440179$92.10
06PRESSURE HOSE ASSY OUTLET109/199811421702922$111.22
06PRESSURE HOSE ASSY OUTLET109/199811421440180$86.33
07O-ring23,0X3,0211421702916$2.38
08Plate111421437552$0.65
09Self-locking collar nutM8-8-ZNS3107119904295ENDED
09Self-locking collar nutM8-10 ZNS3107119905374
10O-ring14,0X2,0211421702905$1.19
11Bracket111421702697$5.46
12Self-locking collar nutM8-8-ZNS3107119904295ENDED
12Self-locking collar nutM8-10 ZNS3107119905374
13ConnectorM14X1,5X44,5113321287132$4.07
14Gasket ringA14X18-CU107119963201$0.18
15OIL PIPE OUTLET109/199811421745231$52.52
15OIL PIPE OUTLET109/199811421714788$70.12+core
16Hose clampL15-19107129952107$0.93
17HOLLOW BOLTM14X1,5X26132416783886$2.11
17HOLLOW BOLTM14X1,5X26132416852469
18Gasket ringA14X20-ALMG232411129986$0.15
19Rubber Mounting211421436982$7.63
20SELF-LOCKING HEX NUTM6264509123157$0.70
21OIL PRESSURE SWITCH109/199712611731499ENDED
21OIL PRESSURE SWITCH109/199712611715504$25.11
21OIL PRESSURE SWITCHM12X1,5109/199712617568480+core, ENDED
21OIL PRESSURE SWITCHM12X1,5109/199712617620512+core

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = The part has been discontinued.
