 RealOEM.com Home => Select another car => Bodywork => Body - rear body

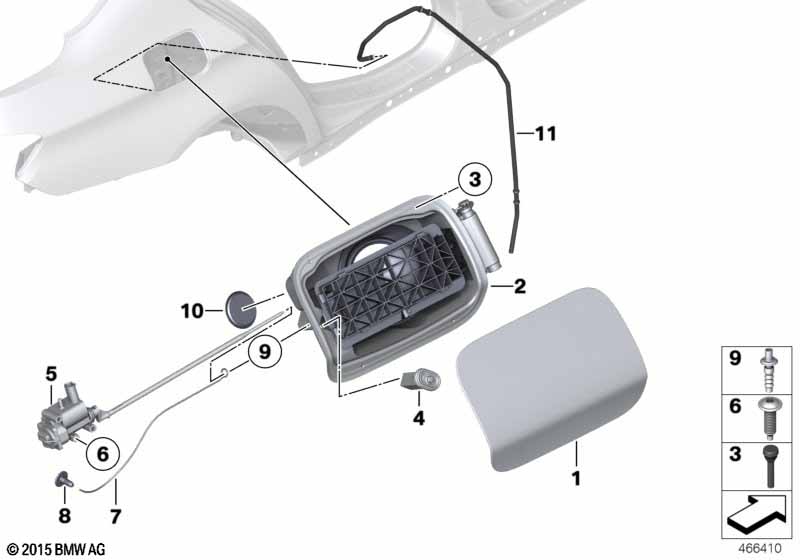

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
01Fill-in flap, primed141007204341
02Cover pot151177204365
03Plug151177044256$1.02
04BUFFER STOP WITH EJECTOR107/201251178228939$7.63
04ejector107/201251177257780
05Filler flap actuator167117200674$57.47
06TORX-BOLT FOR PLASTIC MATERIALL=16MM207146958583$0.25
07PULLING STRIP F EMERGENCY MECHANISM151258234140$1.23
08EMERGENCY MECHANISM151258234143$0.93
09Rubber grommet151257075026$3.48
10Gasket151177217174$4.10

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • Items pictured but not listed are not installed on your vehicle.
  • Items pictured without a number are listed on another diagram.
