F10 528i     Intake manifold system

Language:
Sponsored links
 RealOEM.com Home => Select another car => Engine => Intake manifold

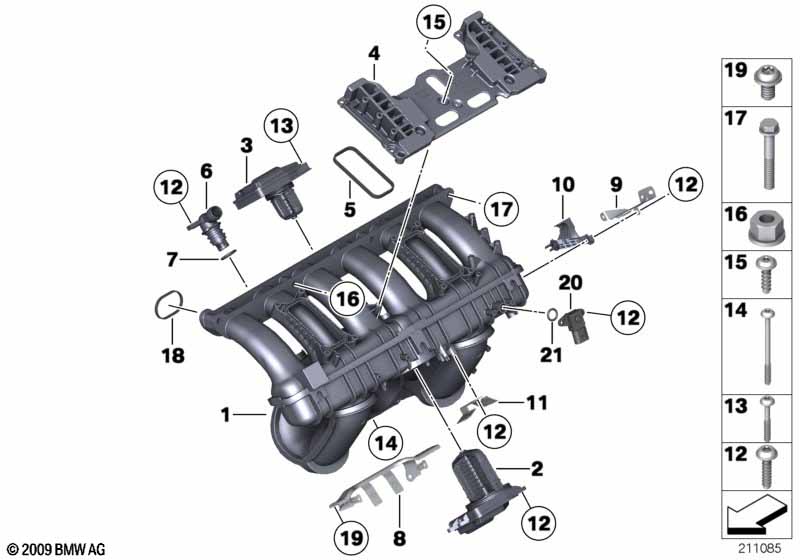

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
01Intake manifold111617584525
02Adjuster unit111617579114$212.50
03Adjuster unit111617560538$212.50
04Heat sink111617584527
05Gasket111617584528
06Angle connector111617561408$58.63
07O-ring23,6X3,55111617533329$3.67
08Bracket, cable harness111617584531
09FUEL PIPE BRACKET111617572629
10Bracket111617584529
11Bracket, cable harness111617530272$16.33
12Screw5X201211617535849$0.75
13Screw50X35211617535850$0.75
14Screw50X66111617535851$0.75
15Screw6X20911617591646
16Hex nut with plateAM7 ZNNIV SI307129905541$0.64
17Hex bolt with washerM7X50-U1407119903918$0.89
18Set of profile gaskets111617547242$41.12
19Oval head screwM6X101911617536248$1.05
20Differential pressure sensor102/201313627585278ENDED
20Differential pressure sensor113628617097
21O-ring113627515272$2.48

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • ENDED = The part has been discontinued.
