E46 330xi     Spring strut front / carrier 4-wheel

Sponsored links
 RealOEM.com Home => Select another car => Front Axle => Front axle suspension

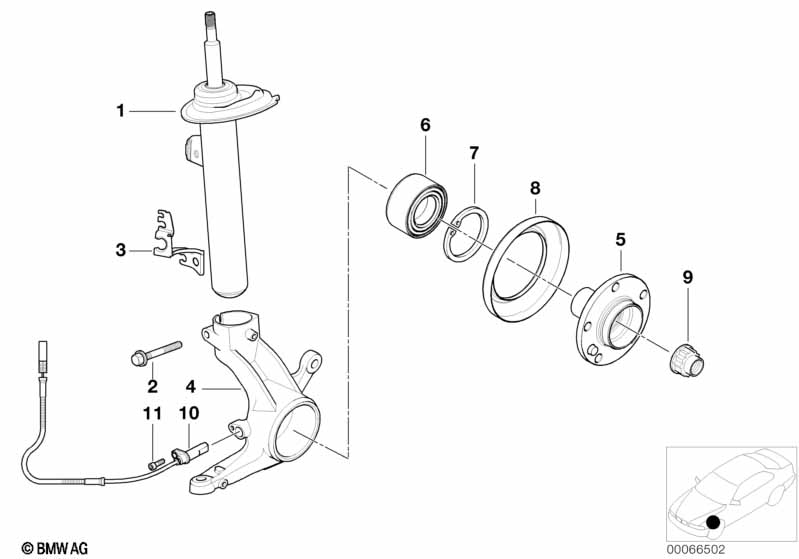

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
  iThe following part is absolutely vital
for strut replacements:
Additional shock absorber, front
01LEFT FRONT SPRING STRUT103/200231316751131$284.70
Required for repair
01FRONT RIGHT SPRING STRUT103/200231316751132$284.70
Required for repair
--Hex bolt with washerM12X1,5X55-10.9103/200231306779487$2.17
01LEFT FRONT SPRING STRUT103/200231316759647$289.21
Required for repair
01FRONT RIGHT SPRING STRUT103/200231316759648$289.21
Required for repair
--Hex bolt with washerM12X1,5X55-10.9103/200231306779487$2.17
02Hex bolt with washerM12X1,5X60-10.9231356778832$2.27
03Left ABS/BVA tube bracket134526750973$5.23
03Right ABS/BVA tube bracket134526750974$5.23
04Carrier, left103/200231216756541$182.98
04Carrier, right103/200231216756542$182.98
04Carrier, left103/200231216759311$189.24+core
04Carrier, right103/200231216759312$189.24+core
05DRIVE FLANGE231201096423$111.38
06Angular contact ball bearing,radial45X85X41231221095702$98.07
07Lock Ring85X3207119934755$1.63
08DUST PROTECTION COLLAR231211093696$4.97
09Collar nutM27X1,5233411133785$10.86
10Pulse generator, ABS234526756382$137.58
11Fillister-head screwM6X16-ZNS207119901438ENDED

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo


  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = The part has been discontinued.
