E46 M3     Park Distance Control (PDC)

Sponsored links
 RealOEM.com Home => Select another car => Distance Systems, Cruise Control => Electronic distance systems

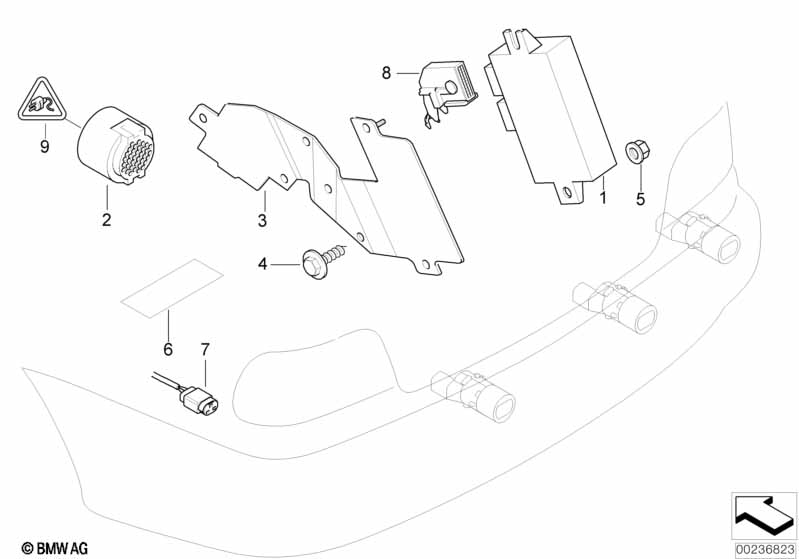

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
01Control unit, active PDC166209129815$232.54
02GONG WITH HOLDER107/200765819155105$82.98
02GONG WITH HOLDER165819155105$82.98
04Hex head screwST4,8X13-C-U1-Z307119906128$0.18
05Plastic nutM6216131176747$0.53
06SOUND ABSORBER151718204893$1.20
07Universal socket housing uncoded3 POL.408/200661138365348$3.40
only in conjunction with
--Bushing contact0,2- 0,5MM²?08/200661130005199$1.88
--Bushing contact0,75MM²?08/200661130006665$1.97
07Rep. kit for socket housing3 POL.461132359998
only in conjunction with
--Bushing contact0,2- 0,5MM²?61130005199$1.88
--Bushing contact0,75MM²?61130006665$1.97
08Universal socket housing uncoded12 POL.261131383736$0.92
only in conjunction with
--Bushing contact0,2- 0,5MM²?61130005197$1.65
--Bushing contact0.75MM²?61130006663$1.82
--Covering cap12 POL./Z-CODE261138364652$1.30
09Universal socket housing, uncoded3 POL.161138352304$16.65
only in conjunction with
--Snap-in receptacle 2.5 watertight0,5-1,0 MM²361130007441$5.53

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo


  • Items pictured but not listed are not installed on your vehicle.
  • Items pictured without a number are listed on another diagram.
