E46 328i     ACCELERATOR PEDAL/BOWDEN CABLE

Language:
Sponsored links
 RealOEM.com Home => Select another car => Pedals => Accelerator pedal

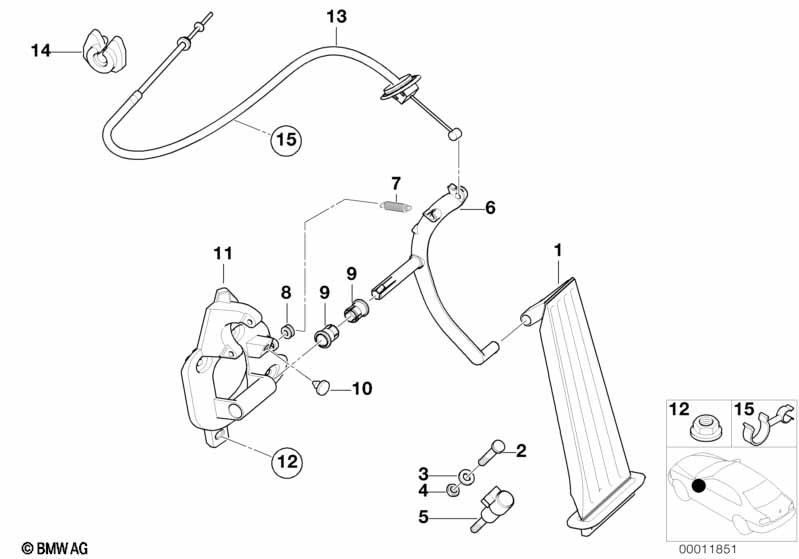

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
01ACCELERATOR PEDAL ASSY135411158660$26.33
02KNURLED BOLTM8X71MM135411157679$1.17
02KNURLED BOLTM8X81MM135416750459$2.75
03CoverD=36MM135411156142$0.52
04Hex nutBM8107119921077ENDED
04Hex nutM8-05-ZNNIV SI107119904948$1.00
For vehicles with
Automatic transmission

S205A=Yes
05KICK-DOWN SWITCH103/199935421181103$29.92
05KICK-DOWN SWITCH103/199935426750458$29.92
06Shaft, accelerator pedalD=14MM135411163876$8.35
07Return springD=11MM135211161587$0.53
08GrommetD=7,5MM135411113728$0.57
09BushingD=14,2MM235411163898$0.73
10Clutch pedal stop buffer135311103849$0.73
11Accelerator pedal bracket135411163875$4.92
12Hex nut with plateBM6307129900299ENDED
13ACCELERATOR BOWDEN CABLE135411164595$10.82
14Grommet f accelerator Bowden cable135411164739$1.68
14Grommet f accelerator Bowden cableD=25MM/5MM135411163887$1.87
SEALING
Bulkhead

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • ENDED = The part has been discontinued.
