2474 R 100 RS     FUEL TANK MOUNTING PARTS

Language:
Sponsored links
 RealOEM.com Home => Select another vehicle => Fuel Supply => Fuel container with filler pipe

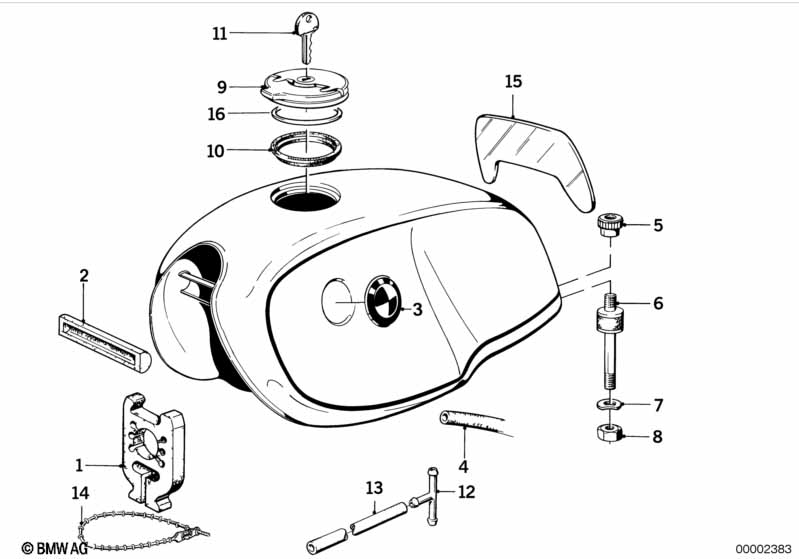

Parts diagram
Sponsored links
No.DescriptionSupplementQty From  Up To Part NumberPriceNotes Photo
01SUPPORT RUBBER116111230030$7.93
02Rubber Mounting116111230031$5.25
03BadgeD=70MM246637686746$12.79
04Hose750MM116131237912ENDED
04Hose1330MM116132307010$26.14
05RING NUT261211233457$0.88
06Bump stop216111230045$15.95
07WAVE WASHERB6407119932099$0.38
07WAVE WASHERB6-ZNS3407119904496ENDED
08Hex nutM6207119905543$0.38
09Lock cylinder with key151252307166$30.85+core
09FILLER CAP WITH LOCK CYLINDER151252307168$205.15+core
09Filler cap151252307125$168.44+core
only in conjunction with
--FILLER CAP LOCK (WITH KEY CODE)151252307173+core
10Ring116112307360$3.65
11Standard key (code)?09/198051251233898$15.57
11Standard key (blank)?09/198051259062680$6.89
11KEY (BLANK)?09/198051251233554$6.89
11Ignition key, folding (code)?09/198051251453645$43.86
12DISTRIBUTION PIECE213111254083$6.92
13Bulk material, fuel hose6X11?13111338115$13.12
14Cable tieL=292MM/B=4,8MM161131377134$0.77
15Foil116111453403ENDED
16Gasket151251453148$4.29

Ads by RealOEM
Eres un experto usando catálogos de partes para BMW? Queremos ofrecerle una carrera con prospección como representante de servicio al cliente trabajando desde casa. Si usted esta interesado, pulsar acá y envié su currículo

Notes

  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = The part has been discontinued.
